Catalogue number | C11 | C21 | C22 | C31 | |
Max. design voltage | 15 | 15/27 | 27 | 38 | |
Nominal current A | 100 | 100 | 100 | 100 | |
Interrupt capacity asymmetric kA | 12 | 12 | 12 | 5 | |
B.I.L kV | 110 | 125 | 150 | 200 | |
Leakage distance mm | 225 | 285 | 450 | 700 | |

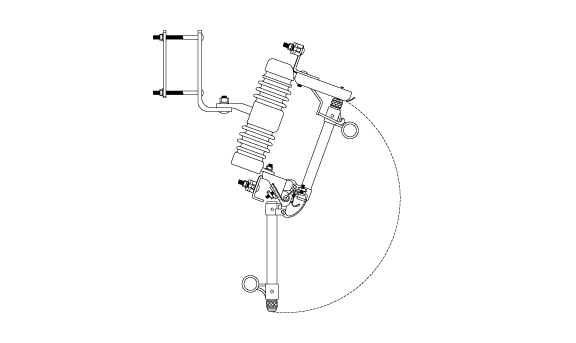

Arcing distance (A) mm | 210 | 248 | 240 | 314 | |
Distance (L) mm | 507 | 640 | 642 | 835 | |
Net weigth kG | 7,600 | 8,500 | 11,000 | 14,000 | |
Gross Weigth kG | 8,300 | 9,300 | 11,600 | 15,000 |
Catalogue number | C15C | C27C | C38C | |
Max. design voltage | 15 | 27 | 38 | |
Nominal current A | 100 | 100 | 100 | |
Interrupt capacity asymmetric kA | 12 | 12 | 5 | |
B.I.L kV | 110 | 150 | 200 | |
Leakage distance mm | 420 | 590 | 830 | |
Arcing distance (A) mm | 228 | 269 | 303 | |
Distance (L) mm | 507 | 642 | 835 | |
Net weigth kG | 9,000 | 10,750 | 13,670 | |
Gross Weigth kG | 9,500 | 11,500 | 14,670 |

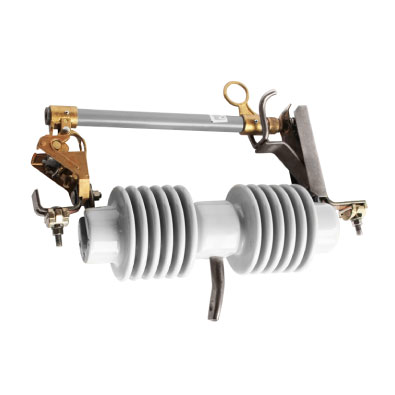

MULTICO fuse cutouts offer full protection for any type of electrical failure in electrical systems and air distribution equipments up to 38kv. Fuse cutouts are provided with hooks to engage the portable load-buster.

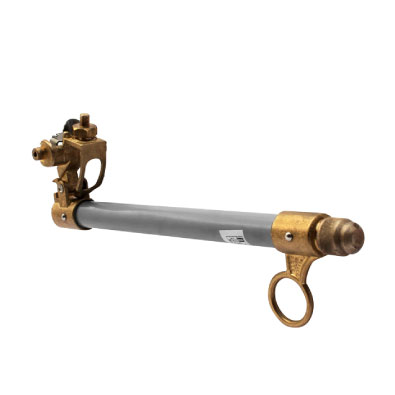

They are used in transformers, capacitors and electric lines. Our fuse-holder is compatible with any as electrical standards establish Multico also produces high pollution fuse cutouts with higher insulation and stainless steel fittings.
